Hub Studs

Roll-Fast has supplying Hub Studs for Wind Power industry with more than 10 years. With our state-of-the-art automated manufacturing, heat treating, coating and inspection systems.

We manufacture Hub Studs in grade 10.9 using high quality alloy and carbon steel material for tower assembly in the wind energy sector, We also manufacture fasteners in 8.8 & 12.9 grade as per customer needs. Our Hub Studs are used extensively in the on shore and offshore areas in the wind energy sector in India, Europe, and USA. Hub Studs are manufactured as per European and American standard in PLAIN, Black and hot dip galvanised (HDG) finish, wherever applicable we can also provide these bolts in special coatings like PTFE, Geomet and Dacromet finish.

We can provide Studs fitted with heat shrink or rigid plastic debonding sleeves.

What is Wind turbine Hub & Stud?

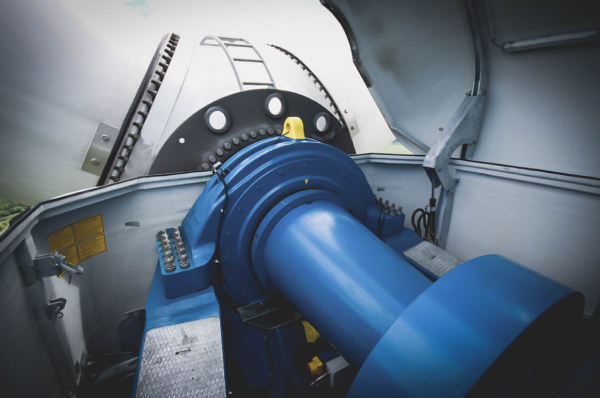

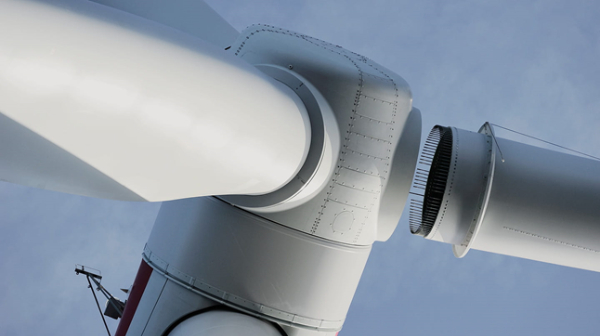

The hub of the wind turbine is the component that connects the blades to the main shaft and ultimately to the rest of the drive train. The hub transmits and must withstand all the loads generated by the blades.

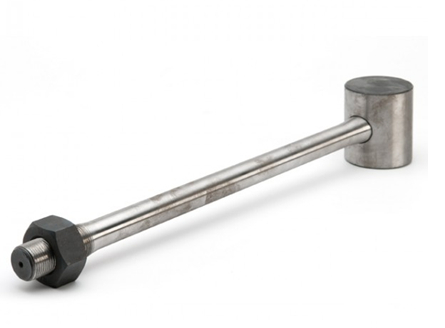

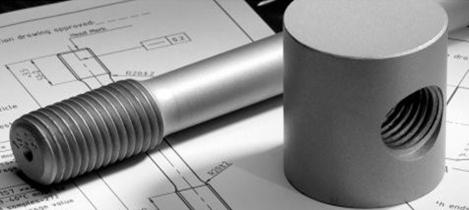

Hub Stud Bolts are non headed bolts, these are in form of a rod and have threads at both ends. They are used to connect blades of turine to Hubs. These stud bolts are generally used in wind turbine blade assembly to hub of turbine. Also stud bolts provided with Cross nuts for hub assembly. These stud bolts are manufactured by us in carbon steel. Popular carbon steel grades 8.8, 10.9, and 12.9. The requirements for these are mentioned in the International standard ISO 898-1.

Commonly type of bolts used in wind towers

S.No.

Specification

Standerd

Grade name

Diameter

1

Hub Studs

ISO 965-1 / ASME B1.1

8.8, 10.9, 12.9

M-16 to M-80 / 1/2” to 3”

2

Cross Nut

ISO 965-1 / ASME B1.1

8, 10, 12

M-16 to M-80 / 1/2” to 3”

3

Hex nut

ISO 965-1 / ASME B1.1

8, 10, 12,

M-16 to M-80 / 1/2” to 3”

In-house quality inspection for coatings and fasteners

Hub Stud Bolts are non headed bolts, these are in form of a rod and have threads at both ends. They are used to connect blades of turine to Hubs. These stud bolts are generally used in wind turbine blade assembly to hub of turbine. Also stud bolts provided with Cross nuts for hub assembly. These stud bolts are manufactured by us in carbon steel. Popular carbon steel grades 8.8, 10.9, and 12.9. The requirements for these are mentioned in the International standard ISO 898-1.

All items are offered with EN10204 3.1 certifications featuring full traceability for the fasteners, also after installation.

Coatings include but are not limited to:

  • Zinc Flake Technologies.
  • PTFE and Plastic Coatings
  • Conventional Hot Dip Galvanized
  • Ceramic Systems
