Cutting

CUTTING / SHEARING

The first step in the manufacturing process of any fastener is cutting, regardless of its final configuration, is cutting the bolt, nut, washer etc. Raw material in the form of round bar & flat strip ranging from 4 meter to 8 meter in length is either Band saw cut.

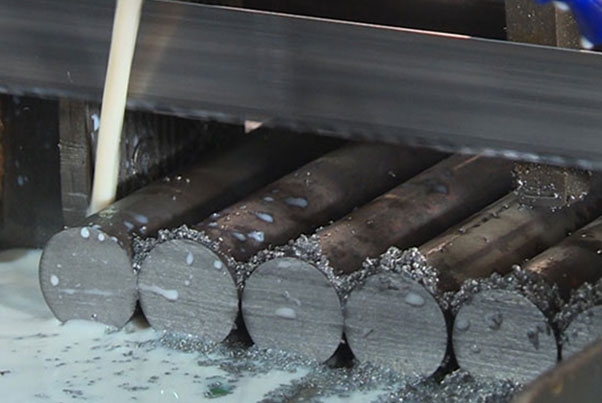

What is the bandsaw cutting process?

A bandsaw is a machine with long tooth blade rotating on wheel that cut material held by a table. It is one of the most common machine tool found in cutting workshop and industry. Basically, the job of a band saw is to give shape to material that has irregular appearance. The band saw shapes material by sawing straight, round or cutting curve. We cut different size of material & grade as per Depending upon the material there are different type of blades used by band saw.

Commonly we use 3/4 & 4/6 teeth per inch. The power to a band saw machine comes from electric motor. Many kinds of band saw machines are used today. Each of them performs similar task but has different characteristics for sawing different material.

What type of material we cut on bandsaw?

We mainly use EN8, EN8D, EN8Cr, EN18, EN19, 41cr, 41crMo4, 42CrMo4, SS316, SS316L, SS316S31, SS304, MS, Brass, Aluminum, copper, bronze etc.

Name of machine

Category

Capacity

Make

Year of Establishment

Total number of machines













Bandsaw cutting machines

Material Cutting section

ø 350

Indotech machines

1989

2

Indotec 320 A Bandsaw machine

Material Cutting section

ø 350

Indotech machines

2003

5

MEBA ECO 320 A Bandsaw machine

Material Cutting section

ø 350

Meba, Spain

2018

1

Indotec 320 A Bandsaw machine

Material Cutting section

ø 350

Indotech machines

2018

3
